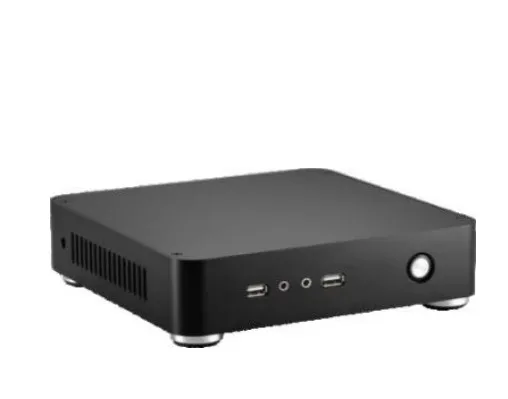

Run 3cx on a Reliable Low-Cost PBX Appliance
Running your 3CX installation on-premises does not imply investing in a dedicated server or office space. You can simply run your
system on a cost-effective, high-performant, small-sized, Rack Mounted PBX appliance.
The eTronics PBX appliances come with 3CX V18, Debian 10 pre-installed – all you need to do is plug them in and you’re set.
| Specification | |
|---|---|
| Dimension | 200*200*44mm |
| Material | Aluminium |

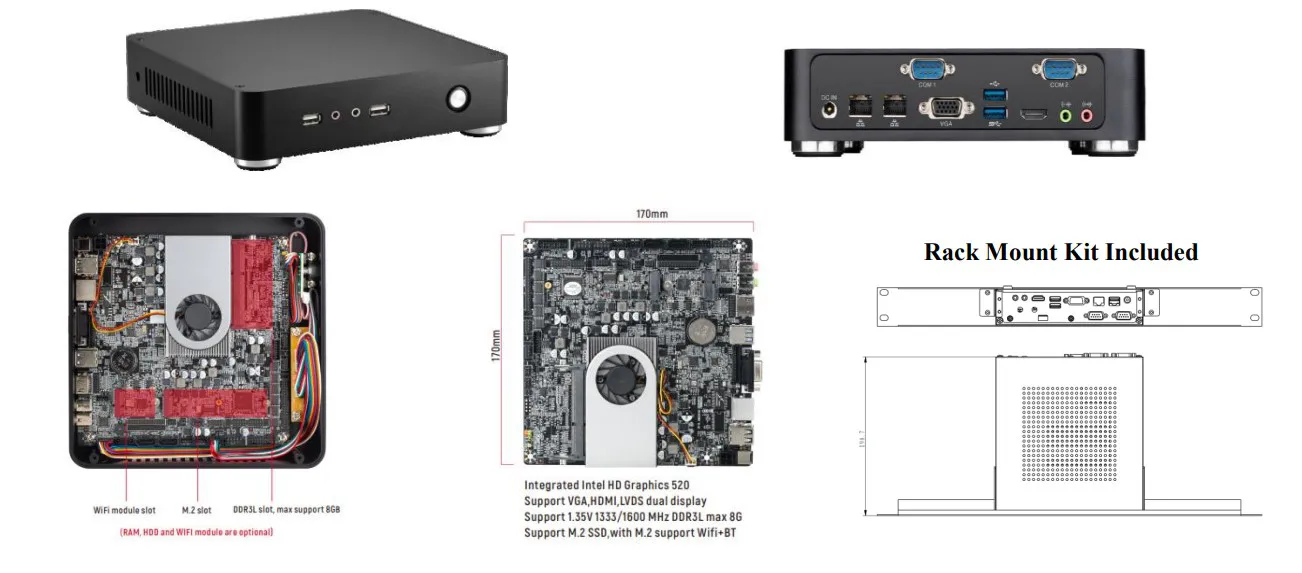

| Motherboard | Mini ITX 170*170mm |
| CPU | Built-in Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) with Active Cooling |
| Graphics |
Intel HD Graphics 520 1*HDMI 1.4a, max. Resolution 4096*2304 1*VGA, max. Resolution 1920*1200 1*Dual Channel 24bit LVDS, max. Resolution 1920*1200 |
| RAM | 1*SO-DIMM Single Channel DDR3L slot, max support 8 GB, Support 1.35V DDR3L 1600 MHz |
| Audio | Built-in Realtek ALC662 HD Audio Controller Support High-Definition Audio Support 2/4/5.1 Surround sound (Via HDMI) |
| HDD | 1*M.2 & 2*SATA Support |
| LAN | Built-in Realtek RTL8111F Support 10/100/1000M Adaptive network card, 2 Lan ports. |
| I/O | 1*DC,1*HDMI, 1*VGA, 2*USB3.0, 2*USB2.0, 1*RJ45, Audio |
| Expansion Options | 2*M.2 slots 1*M.2 M Key support 2242/2280 SSD 1*M.2 E Key support WIFI+BT GPIO, PS/2, LPT 10*USB (4*USB3.0), 6*COM, support COM1 & COM2 the 9th pin with power. |
| OS | Linux & Windows 10 32-bit/64-bit Supported |
| Power | 12V/5A adapter |
| Rackmount | Kit Included |
| Reliability Test | |
|---|---|
| Working Temperature | -1 5 ℃ ~ 60 ℃ |
| Working Humidity | 0%~95% Relative humidity, no condensation |
| Storage Temperature | -40 ℃ ~ 70 ℃ |
| Storage Humidity | 10% ~ 90% |
| Aging Test | 24 hours |
Supports upto 50 Users
- 4 Core CPU
- 4GB Ram
- 64GB SSD
Supports upto 50 Users & 1 mil
minutes of recording
- 4 Core CPU
- 4GB Ram
- 64GB SSD
- 1TB HDD
Supports upto 100 Users
- 4 Core CPU
- 8GB Ram
- 64GB SSD
Supports upto 50 Users
- 4 Core CPU
- 4GB Ram
- 64GB SSD
- 1TB HDD
For more information. Please fill this form.
